Product Description
Made of high-quality stainless steel (2B or high-precision polishing can be selected for the surface), it strictly abides by the minimum thickness requirements in national standards, and the foreskin of non-pressure components are also made of 2mm high-quality stainless steel (the surface can be selected from 2B or high-precision polishing). Real materials plus professional design and manufacturing are the guarantee of quality. Vdobrew attaches great importance to international standards and provides products of the same quality as Europe and the United States. In Europe, America and Australia, it has a good market share.
Configuration and description:
Dish Top/Cylinder/Dish Bottom Side Jackets (1 or 2 Segments)/Bottom Jackets/Side and Bottom Wraps/ Legs with Adjustable Feet
Interface: PVRV/liquid level interface/carbon dioxide filling port/refrigerant inlet/outlet/Pt100 interface/sampling port/side manhole/CIP interface/beer outlet
Options: Single-layer wine storage (without jacket/foreskin/refrigerant inlet/outlet/Pt100 interface)/horizontal beer storage tank
Shaped specifications: 1BBL-300BBL 1000L Single Jacketed Beer Storage Tank; each specification Vdobrew has a variety of standard tanks of different sizes for selection or more designed and manufactured according to your needs.

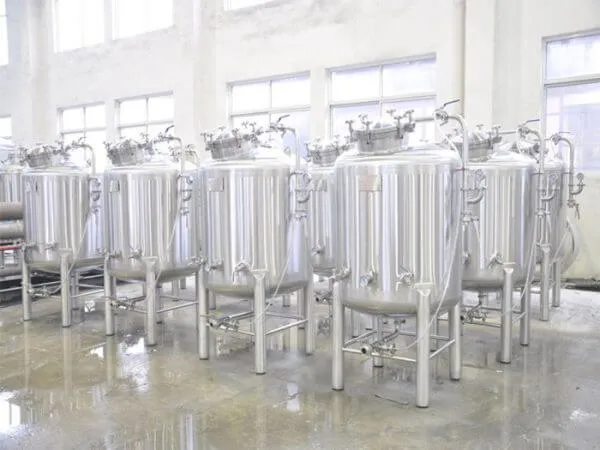

Single Jacketed Beer Storage Tank
• Single dimple cooling jackets (without jacketed, only stainless steel)
• Interior shell: 304 stainless steel, thickness 3mm /11 gauge
• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
• 80mm Polyurethane insulation
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
• 580x480mm Side manway, shadowless
• Dry hop inlet at top;
• Accessories:
Sample Valve x1;
Pressure relief/vacuum valve x1;
Temp. sensor / thermometer x1;
Rotating racking arm with butterfly valve x1;
Bottom outlet with butterfly valve x1;
Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;
Product Parameter
| Capacity | Cylinder(ODxH) | TOTAL HEIGHT | Inner Thickness |
| 7BBL | 1160 x 1000mm | 2034mm | 3mm |
| 10BBL | 1360 x 1013mm | 2360mm | 3mm |
| 15BBL | 1500 x 1120mm | 2514mm | 3mm |
| 20BBL | 1700 x 1220mm | 2682mm | 3mm |
| 30BBL | 1900 x 1460mm | 2810mm | 3mm |
| 40BBL | 1900 x 2200mm | 3600mm | 3mm |
| 50BBL | 1900 x 2450mm | 3800mm | 3mm |
| 60BBL | 2200 x 2800mm | 3900mm | 4mm |
| 80BBL | 2200 x 2950mm | 4250mm | 4mm |
| 100BBL | 2200 x 3200mm | 4650mm | 4mm |
Product Advantage
The product design is compact and suitable for a variety of beer brewing. Overall platform design, easy to install. The process formula is automatically controlled, and the formula can be edited, modified and saved, and the formula can be edited, modified and saved, providing the stability of beer brewing, and the operation is simple and convenient.
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
