500L completely electric brewing equipment

Product Description

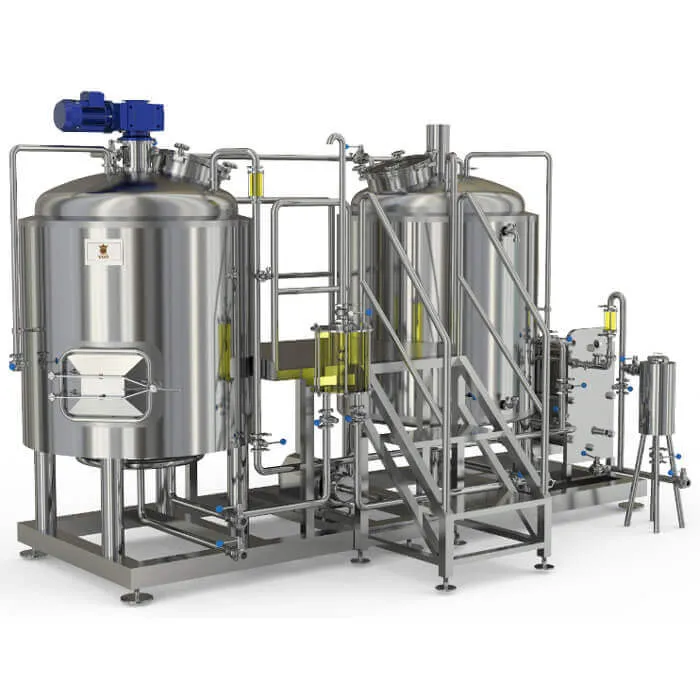

500L completely electric brewing equipment

500L brewing system specification equipment list is as follows:

500l Steam, Electric or Direct fired brewhouse
Mash/lauter – grist hydrator, false bottom, rake, sparging
Wort kettle/whirlpool tun – steam jackets/electric/direct fired, tangential entry
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
Wort grant, hops back
Pipelines & valves
Hot liquor tanks and pumps
500l and 1000l fermentation tanks/brite tanks
Grain Miller
Glycol Chiller and Glycol tank
CIP unit system
Manual button control system, UL/CSA/CE Rated Controls and electrical components
Quick-wear parts

Product Parameter



CapacityCylinder(ODxH)OAHInner Thickness
7BBL1000 x 1250mm2530mm3mm
10BBL1150 x 1250mm2670mm3mm
15BBL1250 x 1680mm3250mm3mm
20BBL1400 x 1700mm3400mm3mm
30BBL1650 x 1850mm3740mm3mm
40BBL1750 x 2050mm4040mm3mm
50BBL1750 x 2750mm4770mm3mm
60BBL1150 x 1250mm2670mm3mm
80BBL2100 x 2900mm5300mm3mm
100BBL2200 x 3350mm5850mm3mm

Product Advantage

Our Service

Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.

Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.

Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.

(1) Brewery equipment configuration:

Specifications/ginsengnumber1000L2000L3000L5000L
production capacityforce1000L/day2000L/day3 000L/day5 000L/day
combinationsquareModeThree-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system
Electric three- phaseThree-phase electricity / 380(220, 415,440…)v / 50 (60)Hz
heating methodElectric heating / steam heating / direct fire heating
inner layerThe inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding
outer claddingCylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing
floor space>200 square meters>300 square meters>500 square metersDetermined by craftsmanship and investment
price220,000-300,000450,000-600,000InquireInquire
RemarkThe configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service!

(2) Combination form of brewery equipment :

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction

(3) Cases of brewery equipment:

Brewing equipment case 2

Indian Bar
Craft Beer Equipment Inspection

Brewing equipment case 1

Shanghai Beer House
500L craft brewing equipment

500L craft beer fermentation tank

(4) Beer brewing process:

Beer brewing process

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction
