Product Description

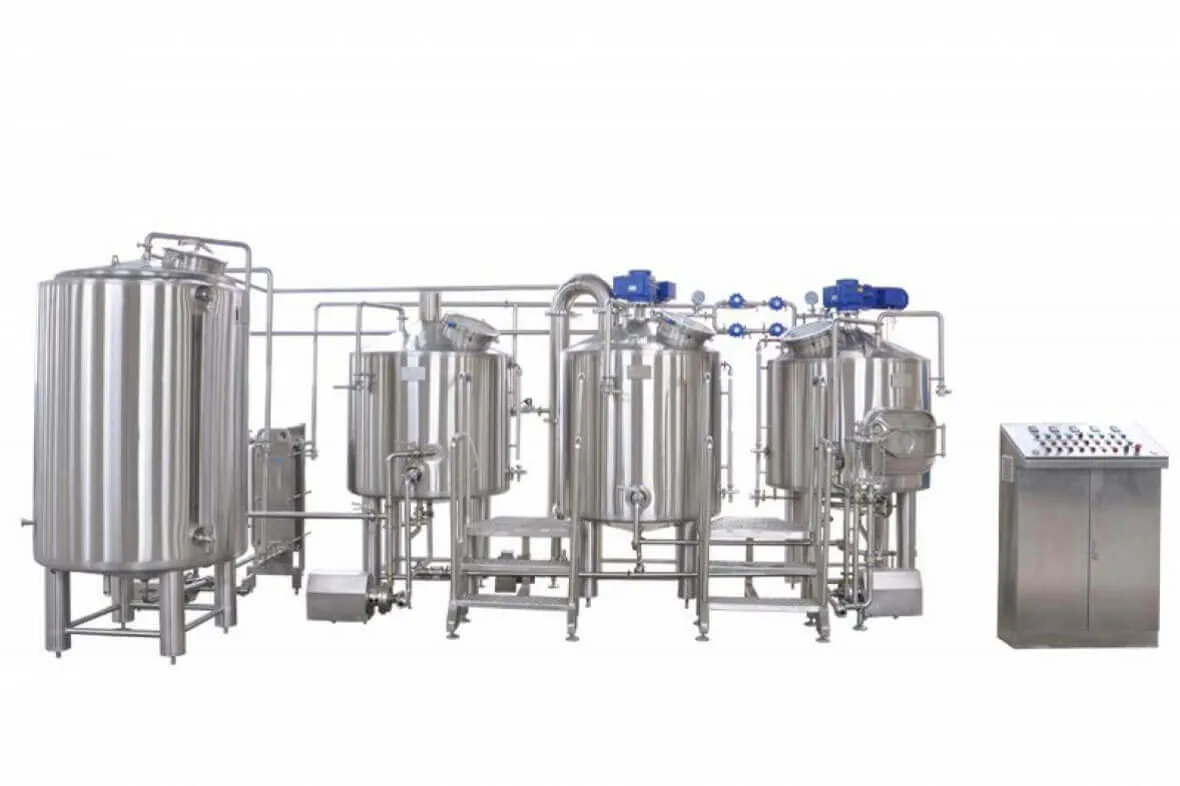

500L brewhouse
•Mash Lauter Tun with grist hydrator
• Kettle Whirlpool Tank with heating jacketed
• Grant Tank
• Stainless steel Platform
• Plate Heat Exchanger
• Sanitary Wort Pump x2;
• Wort Oxygenator;
• Semi-Auto Control Panel;
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
•Interior surface to polished to RA≤0.22μm
•Exterior surface adapts satin polish.
Method of Heating Ways:
• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
• Electric: Use electric heaters in jacket to heat the medium in the jacket
• Gas fired: Use gas burner at bottom to heat tank directly;
| No. | Name | Accessories | Configuration |
| 1 | Grain Milling Unit | Rolling Miller | Double roller |
| Speed differential | |||
| 2 | Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
| Laser cutting V-wire False Bottom | |||
| Easy clean and detachable sparging spray ring | |||
| Multihole wort collect ring(optional) | |||
| Anti-rinser(optional) | |||
| Kettle/Whirlpool Tun | Steam Jacket on bottom and side/direct gas fired heating/electric heating | ||
| Steam vent with condensate ring for kettle stack | |||
| Hot water tank | Steam Jacket heating/direct gas fired heating/electric heating | ||
| Heat exchanger | SUS304 plate | ||
| 3 | Fermentation unit | Fermenter | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 4 | Bright beer tank | Bright beer tank | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 5 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom |
| Cold Water Tank | Dimple plate on side wall | ||
| Chiller | |||
| 6 | Control unit | Brewing and fermetation process Controlling | Manual button control panel or PLC control with touch screen for special |
| 7 | CIP | Caustic Tank | electric heating element inside |
| Sterilization Tank | |||
| Transfer&Control |
Product Parameter
crushing system
| 1. Malt Crusher : Crushing output: 300kg/h ; 2. Crushing effect : the skin is broken but not broken, the roller type; the motor, pulley and belt are matched; 3. Motor power : 1.1kW
|
saccharification system
| 1. Saccharification pot + filtration + boiling + spin sink + hot water tank : ① Dimensions: φ1360×2500; Total volume 1400L, effective volume 1000L; Dimensions of hot water tank: φ1560×2320; Total volume 2200L, effective volume 2000L; ②Saccharification pot: heat exchange area 1.46m2 + boiling : heat exchange area 1.5m2 + hot water tank: heat exchange area 1.6m2 ③The thickness of the insulation layer is 80mm; the thickness of the inner tank is 3mm, and the outer shell is 2mm oil-grinding wire drawing board; 2. Saccharification wort pump : ①Wort or mash conveying capacity: 3m 3 /h; ②Stainless steel sanitary conveying pump, voltage power: 380V, 0.75kW , frequency conversion speed regulation; ③Head : 18m; 3. Plate heat exchanger : heat exchange area: 12㎡; double-section 6-lead, external dimension: 620×320×710 ;
|
Fermentation system
| 1. Beer fermentation tank : ①Dimensions: φ1260×2520; total volume 1320L, effective volume 1000L; ②The thickness of the insulation layer is 80mm ; the thickness of the inner tank: 2.5mm ; ③The inner tank is mechanically polished, outsourced with 2mm oil-grinding wire drawing board, and the welded seam is polished and sanded; ④Heat exchange area: 2.2m 2 2. Wort oxygenation device : It is made of 304 stainless steel finishing, no pollution dead angle, with titanium rod and sight glass, oxygenation can be seen evenly; 3. Fermentation pipeline and valve : food-grade stainless steel pipeline, argon arc welding inner protection welding without pollution dead angle, high-quality sanitary butterfly valve.
|
Cooling System
| 1. Ice water tank : Dimensions: φ1800×2330; total volume 3200L, effective volume 3000L; 2. Refrigeration unit : Air-cooled unit Refrigeration capacity: 8HP, power: 6kW/group 3. Ice water pump : flow rate 4m 3 /h lift 36m; centrifugal 220V 0.75kw to heat exchanger and fermentation tank to cool down
|
Control System
| Control cabinet : Dimensions: 1700×700×350mm ; realize the temperature display of saccharification system, automatic temperature control of fermentation system, power control, and automatic temperature control of ice water;
|
cleaning system
| CIP cleaning truck : Dimensions: φ1300×600 Effective volume: 100L, including 100L lye tank, sterilization tank and trolley; inner tank thickness: 2mm; outer surface oil-grinding wire drawing board, welding seam polishing belt
|
| Remark | For details, please contact the company’s business personnel, and enter into detailed communication and negotiation. |
| Capacity | Cylinder(ODxH) | OAH | Inner Thickness |
| 7BBL | 1000 x 1250mm | 2530mm | 3mm |
| 10BBL | 1150 x 1250mm | 2670mm | 3mm |
| 15BBL | 1250 x 1680mm | 3250mm | 3mm |
| 20BBL | 1400 x 1700mm | 3400mm | 3mm |
| 30BBL | 1650 x 1850mm | 3740mm | 3mm |
| 40BBL | 1750 x 2050mm | 4040mm | 3mm |
| 50BBL | 1750 x 2750mm | 4770mm | 3mm |
| 60BBL | 1150 x 1250mm | 2670mm | 3mm |
| 80BBL | 2100 x 2900mm | 5300mm | 3mm |
| 100BBL | 2200 x 3350mm | 5850mm | 3mm |
Product Advantage
The product design is compact and suitable for a variety of beer brewing. Overall platform design, easy to install. The process formula is automatically controlled, and the formula can be edited, modified and saved, and the formula can be edited, modified and saved, providing the stability of beer brewing, and the operation is simple and convenient.
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
