Product Description

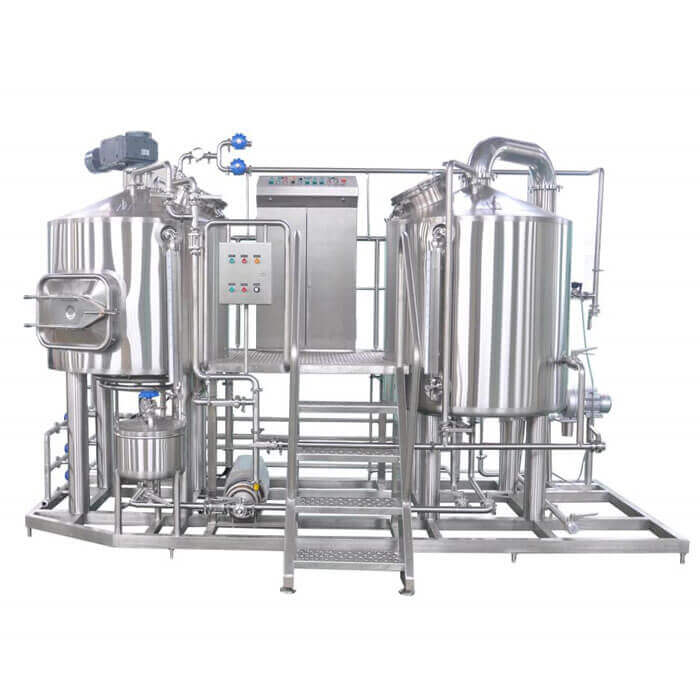

Skid mounted 500L brewery equipment, Electric or Direct fired brewhouse
We are leading manufacturer of professional brewery equipment, supplying beer dispenser, skid mounted electric brewery etc. Our popular products include: 500L electric brew house, 300l electric brewery, 150l electric brewing equipment. All our products have comparatively lower investment costs, simple operation, high efficiency and good quality.
These features make our products very popular among customers all over the world. Even though we provide these products at competitive prices to meet your limited budgets, they do not lose any style or quality in craftsmanship or function.
We are an ISO 9001 certified company with more than 15 years of experience in this industry. We believe in providing best service to our customers by manufacturing high quality products with reasonable prices. Our team is dedicated to bring success for you by delivering what you expect from us!
Mash/lauter – grist hydrator, false bottom, rake, sparging
Wort kettle/whirlpool tun – steam jackets/electric/direct fired, tangential entry
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
Wort grant, hops back
Pipelines & valves
Hot liquor tanks and pumps
500L and 1000L fermentation tanks/brite tanks
Grain Miller
Glycol Chiller and Glycol tank
CIP unit system
Manual button control system, UL/CSA/CE Rated Controls and electrical components
Quick-wear parts
| No. | Name | Components | Specification |
| 1 | Grain Milling Unit | Rolling Miller | Double roller |
| Speed differential | |||
| 2 | Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
| Laser cutting V-wire False Bottom | |||
| Easy clean and detachable sparging spray ring | |||
| Multihole wort collect ring(optional) | |||
| Anti-rinser(optional) | |||
| Kettle/Whirlpool Tun | Steam Jacket on bottom and side/direct gas fired heating/electric heating | ||
| Steam vent with condensate ring for kettle stack | |||
| Hot water tank | Steam Jacket heating/direct gas fired heating/electric heating | ||
| Heat exchanger | SUS304 plate | ||
| 3 | Fermentation unit | Fermenter | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 4 | Bright beer tank | Bright beer tank | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Germany import Kieselmann Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 5 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom |
| Cold Water Tank | Dimple plate on side wall | ||
| Chiller | |||
| 6 | Control unit | Brewing and fermetation process Controlling | Manual button control panel or PLC control with touch screen for special |
| 7 | CIP | Caustic Tank | electric heating element inside |
| Sterilization Tank | |||
| Transfer&Control | |||
| 8 | Others |
Product Parameter
crushing system
| 1. Malt Crusher : Crushing output: 300kg/h ; 2. Crushing effect : the skin is broken but not broken, the roller type; the motor, pulley and belt are matched; 3. Motor power : 1.1kW |
saccharification system
| 1. Saccharification pot + filtration + boiling + spin sink + hot water tank : ① Dimensions: φ1360×2500; Total volume 1400L, effective volume 1000L; Dimensions of hot water tank: φ1560×2320; Total volume 2200L, effective volume 2000L; ②Saccharification pot: heat exchange area 1.46m2 + boiling : heat exchange area 1.5m2 + hot water tank: heat exchange area 1.6m2 ③The thickness of the insulation layer is 80mm; the thickness of the inner tank is 3mm, and the outer shell is 2mm oil-grinding wire drawing board; 2. Saccharification wort pump : ①Wort or mash conveying capacity: 3m 3 /h; ②Stainless steel sanitary conveying pump, voltage power: 380V, 0.75kW , frequency conversion speed regulation; ③Head : 18m; 3. Plate heat exchanger : heat exchange area: 12㎡; double-section 6-lead, external dimension: 620×320×710 ; |
Fermentation system
| 1. Beer fermentation tank : ①Dimensions: φ1260×2520; total volume 1320L, effective volume 1000L; ②The thickness of the insulation layer is 80mm ; the thickness of the inner tank: 2.5mm ; ③The inner tank is mechanically polished, outsourced with 2mm oil-grinding wire drawing board, and the welded seam is polished and sanded; ④Heat exchange area: 2.2m 2 2. Wort oxygenation device : It is made of 304 stainless steel finishing, no pollution dead angle, with titanium rod and sight glass, oxygenation can be seen evenly; 3. Fermentation pipeline and valve : food-grade stainless steel pipeline, argon arc welding inner protection welding without pollution dead angle, high-quality sanitary butterfly valve. |
Cooling System
| 1. Ice water tank : Dimensions: φ1800×2330; total volume 3200L, effective volume 3000L; 2. Refrigeration unit : Air-cooled unit Refrigeration capacity: 8HP, power: 6kW/group 3. Ice water pump : flow rate 4m 3 /h lift 36m; centrifugal 220V 0.75kw to heat exchanger and fermentation tank to cool down |
Control System
| Control cabinet : Dimensions: 1700×700×350mm ; realize the temperature display of saccharification system, automatic temperature control of fermentation system, power control, and automatic temperature control of ice water; |
cleaning system
| CIP cleaning truck : Dimensions: φ1300×600 Effective volume: 100L, including 100L lye tank, sterilization tank and trolley; inner tank thickness: 2mm; outer surface oil-grinding wire drawing board, welding seam polishing belt |
| Remark | For details, please contact the company’s business personnel, and enter into detailed communication and negotiation. |
Product Advantage
When you’re looking for a skid-mounted 500L brewery equipment, we’re the place to go. We’re a leading manufacturer of professional brewery equipment and we have a variety of products that will meet your needs—including 300l electric breweries and 150l electric brewing equipment.
All our products are comparatively lower investment costs, simple operation, high efficiency and good quality. These features make our products very popular among customers all over the world. Even though we provide these products at competitive prices to meet your limited budgets, they do not lose any style or quality in craftsmanship or function.
The product design is compact and suitable for a variety of beer brewing. Overall platform design, easy to install. The process formula is automatically controlled, and the formula can be edited, modified and saved, providing the stability of beer brewing, and the operation is simple and convenient.
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
Bottom of product page – service introduction
(3) Cases of brewery equipment:
Indian Bar
Craft Beer Equipment Inspection
Shanghai Beer House
500L craft brewing equipment
American Bar Shipping
500L craft beer fermentation tank
(4) Beer brewing process:
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
