Product Description
Product introduction:

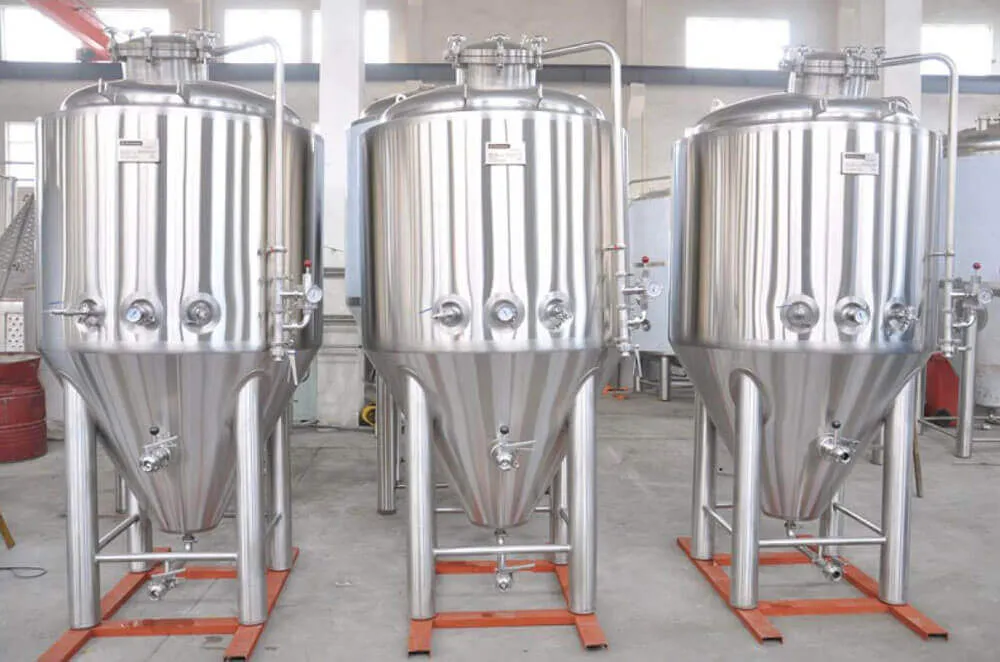

The 500l Beer Fermentation Tank is the ideal solution for any bar, restaurant, or small catering company looking to add a custom-built beer fermentation tank to their facility.
This portable tank is made of stainless steel and comes with a convenient carrying handle. It also includes two air lock valves, making it easy to monitor your fermentation process.
The 500l Beer Fermentation Tank is available in a variety of sizes, so you can find the right fit for your needs. This customizable fermenter tank is perfect for any business that wants to create its own unique beer flavors or experiment with new recipes.
The beer fermentation tank is used in the fermentation stage of beer equipment, and adopts honeycomb jacket and polyurethane for heat preservation. The fermentation tank is made of stainless steel SUS304 material. The tank is equipped with an overpressure and vacuum protection safety valve, and an adjustable wine outlet. It is a kind of equipment for mechanical stirring and fermentation of materials. The equipment adopts the internal circulation method and adopts asymmetric speed regulation stirring, so that the material can be cooled rapidly and at the same time, the damage to the viscosity of the material is minimized.
Main products: home brewing beer equipment, bar restaurant beer equipment, craft brewery, teaching experiment equipment, fruit wine equipment, microbial fermentation equipment, enzymatic decomposition equipment, brewing auxiliary equipment, etc.
Product Category:
Bar/Restaurant Beer Equipment
Product name: 500L beer fermentation tank
[customization instructions]: complete products, customized on demand
| Yield | 500L/batch |
| cooling method | Alcohol or Glycol |
| cooling jacket | 1 stage |
| Inner roughness | 0.6um, pickling passivation |
| inner working pressure | 1.5Bar |
| Inner bladder test pressure | 3.0 bar |
| Jacket working pressure | 1.5Bar |
| Jacket test pressure | 3.0 bar |
| Scope of use | Suitable for small catering in hotels, bars, etc. |
| automation | Semi-automatic/Fully automatic |
| Product advantages | Tank body welding adopts TIG welding, high welding strength, high welding surface quality, not easy to contaminate bacteria, and easy to clean. Pipe welding is formed by one-time bending of pipe bending machine, which avoids welding joints, improves the smoothness of the surface, and is easy to clean. |
Product Parameter
| Capacity | Cylinder(ODxH) | OAH | Inner Thickness |
| 7BBL | 1000 x 1250mm | 2530mm | 3mm |
| 10BBL | 1150 x 1250mm | 2670mm | 3mm |
| 15BBL | 1250 x 1680mm | 3250mm | 3mm |
| 20BBL | 1400 x 1700mm | 3400mm | 3mm |
| 30BBL | 1650 x 1850mm | 3740mm | 3mm |
| 40BBL | 1750 x 2050mm | 4040mm | 3mm |
| 50BBL | 1750 x 2750mm | 4770mm | 3mm |
| 60BBL | 1150 x 1250mm | 2670mm | 3mm |
| 80BBL | 2100 x 2900mm | 5300mm | 3mm |
| 100BBL | 2200 x 3350mm | 5850mm | 3mm |
project | technical parameter |
Nominal volume | 1L 、2L/3L、5L、7L、10L |
Filling coefficient | 65-80% , 70% is optimal |
Tank configuration | Special temperature-resistant and pressure-resistant single-layer high-silicon boron glass jar, the upper cover is made of 316L stainless steel |
stirring system | Top-entry mechanical stirring system; aseptic mechanical sealing system; |
structure | Desktop fermentation tank, compact structure, beautiful appearance, easy to operate |
ventilation system | Deep ventilation, equipped with stainless steel annular distributor; |
temperature control | Online detection, digital setting, automatic / manual control; |
pH control | On-line detection, 1 -way or 2 -way peristaltic pump automatically adds alkali or acid for adjustment; |
Dissolved Oxygen (DO) | Online detection, the range is 0-100% or 0-200% ; |
Feed control | Standard 1 -way peristaltic pump time proportional flow feeding, cumulative display and record of flow feeding |
Defoaming method | Conductive foam electrode, automatic alarm for abnormal foam conditions; |
Control System | It adopts industrial JD-bio control system, adopts Siemens PLC controller, 32 -bit true color touch screen operation interface, complete functions and stable operation, |
Sterilization method | Off-site or on-site sterilization (the company can replace the stainless steel liner fully automatic vertical autoclave) |
optional | 1. Multi-channel feeding 2. Feeding weighing 3. Oxygen- enriched bypass 4. Online detection of redox potential 5. Automatic detection and control of air flow 6. Online detection of CH4 , O2 , CO2 content in tail gas 7. Methanol (ethanol) Online detection of content 8. Online detection of glucose and specific amino acids |
Features | Off-site / in- situ sterilization, safe and reliable, accurate medium concentration; clear observation, special mechanical seal, reliable sealing; strong stirring power, clear observation, easy disassembly and assembly; easy to use. Even crude mash medium can be adapted. |
Product Advantage
Product introduction: Saccharification equipment is an ideal choice for hotels, barbecue shops, restaurants, bars and other catering and entertainment establishments to produce beer by themselves for guests to enjoy directly. Exquisite and luxurious appearance, small footprint, not only has a high ornamental value, but also allows guests to intuitively see the whole process of beer production and appreciate the profound connotation of beer culture. The characteristics of the equipment are: brewing and drinking freshly, maintaining the natural freshness and nutrition of beer, rich in more than seventeen kinds of amino acids, including eight kinds of amino acids that are essential but cannot be synthesized by the human body, and more than eleven kinds of amino acids. In addition, brewers can configure yellow beer, dark beer and green beer according to different tastes of guests to meet the needs of consumers of different levels and tastes.
Main products: home brewing beer equipment, bar restaurant beer equipment, craft brewery, teaching experiment equipment, fruit wine equipment, microbial fermentation equipment, enzymatic decomposition equipment, brewing auxiliary equipment, etc.
Product Category: Bar/Restaurant Beer Equipment
Product Name: 1000L Brewing Equipment
[customization instructions]: complete products, customized on demand
– Customized Fermentation Tank for Bar/Restaurant Beer Fermentation Equipment , Small Catering In Hotels, Bars, Etc.
– Product Advantage:
1. Cooling system with heat exchanger to prevent over fermentation and contamination of beer
2. The temperature is controlled by PID temperature controller with alarm function
3. After cooling, the beer can be pumped into the storage tank for cooling and filling into bottles or kegs
4. The whole process is completed automatically
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
Bottom of product page – service introduction
(3) Cases of brewery equipment:
Indian Bar
Craft Beer Equipment Inspection
Shanghai Beer House
500L craft brewing equipment
American Bar Shipping
500L craft beer fermentation tank
(4) Beer brewing process:
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
