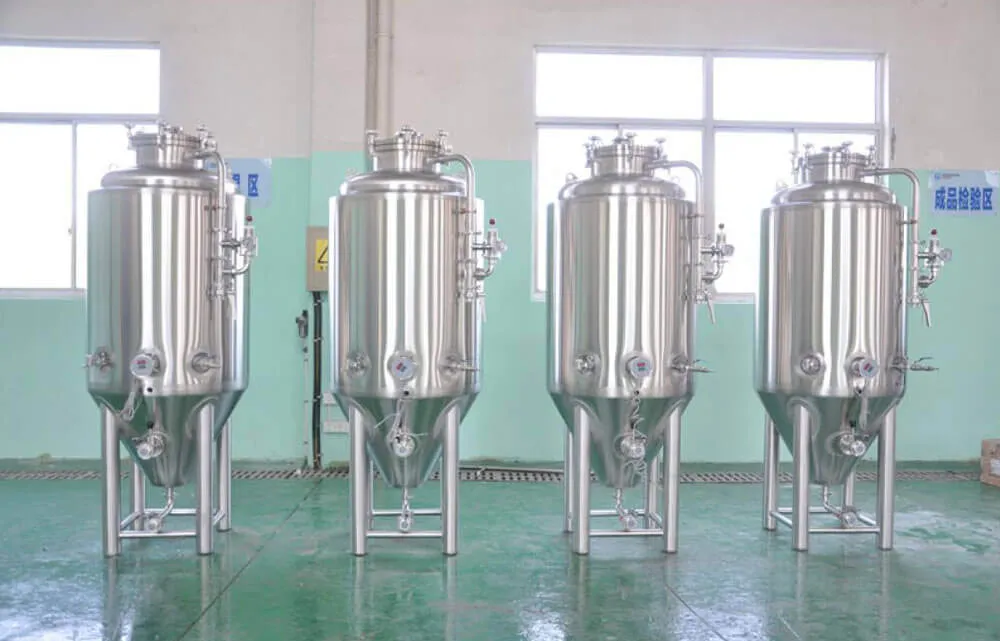

3BBL Beer Fermentation Tank

Product Description

3BBL Beer Fermentation Tank is a kind of beer brewing equipment developed by our company. We have 3BBL beer fermenter, 5BBL beer fermenter and 10BBL beer fermenter.

3BBL fermentation tank is a type of beer brewing equipment developed by our company. We have 3BBL beer fermenter, 5BBL beer fermenter and also 10BBL beer fermenter. Here we will talk about 3bbl beer fermentation tank and its main features. And then give some examples and use cases based on this fermentation tank in the end.

Fermentation tanks are one of the main components of a brewery. Beer fermentation is the final process in brewing some beer. And the beer fermenters are used for this process at a brewery. There are different kinds of beer fermenters which can be used in a brewery. And I want to introduce 3BBL beer fermenter and compare it with a 5BBL fermenter.

25% top space to avoid beer foam out;
Accommodate to brew 1/2 batches
2” pressure vacuum relief valve
Kieselmann adjustable pressure relief valve
1.5” sample valve
Pressure gauge
CIP – rotary spray ball
CO2 blow off tube
Rotating racking assembly
60 degree cone
Multiple glycol zones
Fully welded cladding
Adjustable tank leveling pads
Carb Stone 1.5” TC assembly
RTD Probe
1.5″ Butterfly valves
Tension braces on legs

CapacityCylinder(ODxH)Total HeightInner Thickness
3BBL960x750mm1880mm3mm
5BBL1060x850mm2250mm3mm
7BBL1160 x 900mm2450mm3mm
10BBL1260 x 1150mm2800mm3mm
15BBL1500 x 1220mm3100mm3mm
20BBL1600 x 1400mm3500mm3mm
30BBL1800 x 1650mm3760mm3mm
40BBL1900 x 1850mm4210mm3mm
50BBL1900 x 2050mm4750mm3mm
60BBL2200 x 2150mm4830mm4mm
80BBL2200 x 2900mm5780mm4mm
100BBL2200 x 3600mm6450mm4mm

Product Parameter

project

3BBL Beer Fermentation Tank technical parameter

Nominal volume

1L 、2L/3L、5L、7L、10L

Filling coefficient

65-80% , 70% is optimal

Tank configuration

Special temperature-resistant and pressure-resistant single-layer high-silicon boron glass jar, the upper cover is made of 316L stainless steel

stirring system

Top-entry mechanical stirring system; aseptic mechanical sealing system;
DC stirring motor is easy to disassemble and assemble, which is convenient for off-site sterilization.
Standard two -layer straight impeller, one-level high-efficiency defoaming paddle; Optional flow paddles;
stepless speed regulation, digital set speed control

structure

Desktop fermentation tank, compact structure, beautiful appearance, easy to operate

ventilation system

Deep ventilation, equipped with stainless steel annular distributor;
glass rotameter display, pressure gauge display, manual valve adjustment flow
is equipped with American PALL high-efficiency sterilization filter, filtration accuracy 0.2μm
requires external compressed air, equipped with high-quality water removal regulator, Continuous and stable air supply;
optional mass flow controller to automatically control air flow

temperature control

Online detection, digital setting, automatic / manual control;
German Pt-100 temperature probe and digital temperature instrument
built-in electric heating device and external cooling water to automatically control the temperature

pH control

On-line detection, 1 -way or 2 -way peristaltic pump automatically adds alkali or acid for adjustment;
imported Swiss Mettler / Hamilton pH electrode, can be sterilized by high temperature steam

Dissolved Oxygen (DO)

Online detection, the range is 0-100% or 0-200% ;
imported Swiss Mettler / Hamilton DO electrode can be sterilized by high temperature steam;
optional linkage control with rotation speed

Feed control

Standard 1 -way peristaltic pump time proportional flow feeding, cumulative display and record of flow feeding

Defoaming method

Conductive foam electrode, automatic alarm for abnormal foam conditions;
standard 1 -way peristaltic pump to automatically / manually add defoamer, cumulative display and record of flow addition

Control System

It adopts industrial JD-bio control system, adopts Siemens PLC controller, 32 -bit true color touch screen operation interface, complete functions and stable operation,
and A -type simple sub-meter control system is optional

Sterilization method

Off-site or on-site sterilization (the company can replace the stainless steel liner fully automatic vertical autoclave)

optional

1. Multi-channel feeding
2. Feeding weighing
3. Oxygen- enriched bypass
4. Online detection of redox potential
5. Automatic detection and control of air flow
6. Online detection of CH4 , O2 , CO2 content in tail gas
7. Methanol (ethanol) Online detection of content
8. Online detection of glucose and specific amino acids

Features

Off-site / in- situ sterilization, safe and reliable, accurate medium concentration; clear observation, special mechanical seal, reliable sealing; strong stirring power, clear observation, easy disassembly and assembly; easy to use. Even crude mash medium can be adapted.

Product Advantage

3BBL Beer Fermentation Tank is a part of beer brewing equipment, designed for beer fermentation, suitable for brewery or gastropub. It has multi-functional characteristics and wide application, can be used in various industrial sectors.

Our Service

Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.

Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.

Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.

(1) Brewery equipment configuration:

Specifications/ginsengnumber1000L2000L3000L5000L
production capacityforce1000L/day2000L/day3 000L/day5 000L/day
combinationsquareModeThree-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system
Electric three- phaseThree-phase electricity / 380(220, 415,440…)v / 50 (60)Hz
heating methodElectric heating / steam heating / direct fire heating
inner layerThe inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding
outer claddingCylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing
floor space>200 square meters>300 square meters>500 square metersDetermined by craftsmanship and investment
price220,000-300,000450,000-600,000InquireInquire
RemarkThe configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service!

(2) Combination form of brewery equipment :

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction

(3) Cases of brewery equipment:

Brewing equipment case 2

Indian Bar
Craft Beer Equipment Inspection

Brewing equipment case 1

Shanghai Beer House
500L craft brewing equipment

500L craft beer fermentation tank

(4) Beer brewing process:

Beer brewing process

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
