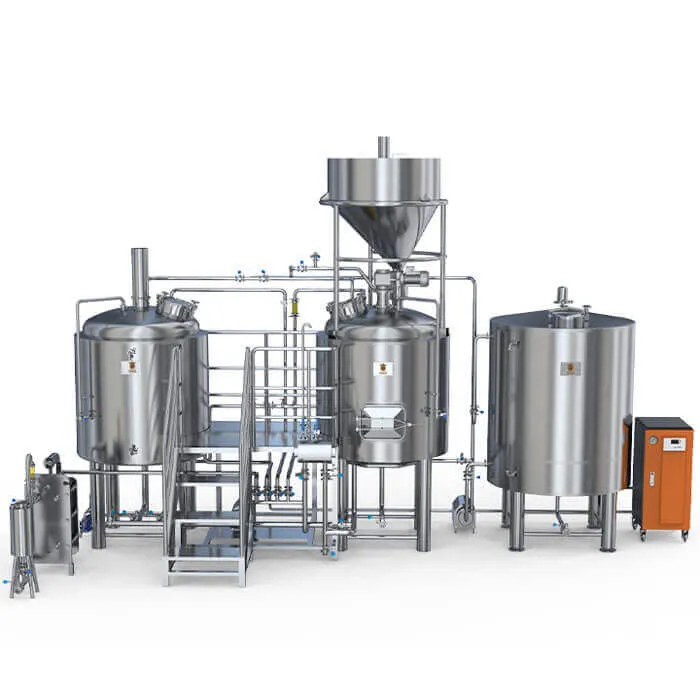

20BBL 3 Vessels Turnkey Brewing System

Product Description

Product Parameter

crushing system



1. Malt Crusher : Crushing output: 300kg/h ;

2. Crushing effect : the skin is broken but not broken, the roller type; the motor, pulley and belt are matched;

3. Motor power : 1.1kW



saccharification system



1. Saccharification pot filtration + boiling + spin sink + hot water tank :

① Dimensions: φ1360×2500; Total volume 1400L, effective volume 1000L; Dimensions of hot water tank: φ1560×2320; Total volume 2200L, effective volume 2000L;

②Saccharification pot: heat exchange area 1.46m2 boiling : heat exchange area 1.5m2 + hot water tank: heat exchange area 1.6m2

③The thickness of the insulation layer is 80mm; the thickness of the inner tank is 3mm, and the outer shell is 2mm oil-grinding wire drawing board;

2. Saccharification wort pump :

①Wort or mash conveying capacity: 3m 3 /h;

②Stainless steel sanitary conveying pump, voltage power: 380V, 0.75kW , frequency conversion speed regulation;

③Head 18m;

3. Plate heat exchanger : heat exchange area: 12㎡; double-section 6-lead, external dimension: 620×320×710 ;



Fermentation system



1. Beer fermentation tank :

Dimensions: φ1260×2520; total volume 1320L, effective volume 1000L;

②The thickness of the insulation layer is 80mm ; the thickness of the inner tank: 2.5mm ;

③The inner tank is mechanically polished, outsourced with 2mm oil-grinding wire drawing board, and the welded seam is polished and sanded; ④Heat exchange area: 2.2m 2

2. Wort oxygenation device : It is made of 304 stainless steel finishing, no pollution dead angle, with titanium rod and sight glass, oxygenation can be seen evenly;

3. Fermentation pipeline and valve : food-grade stainless steel pipeline, argon arc welding inner protection welding without pollution dead angle, high-quality sanitary butterfly valve.



Cooling System



1. Ice water tank : Dimensions: φ1800×2330; total volume 3200L, effective volume 3000L;

2. Refrigeration unit : Air-cooled unit Refrigeration capacity: 8HP, power: 6kW/group

3. Ice water pump : flow rate 4m 3 /h lift 36m; centrifugal 220V 0.75kw to heat exchanger and fermentation tank to cool down



Control System



Control cabinet : Dimensions: 1700×700×350mm realize the temperature display of saccharification system, automatic temperature control of fermentation system, power control, and automatic temperature control of ice water;



cleaning system



CIP cleaning truck : Dimensions: φ1300×600 Effective volume: 100L, including 100L lye tank, sterilization tank and trolley; inner tank thickness: 2mm; outer surface oil-grinding wire drawing board, welding seam polishing belt



RemarkFor details, please contact the company’s business personnel, and enter into detailed communication and negotiation.



CapacityCylinder(ODxH)OAHInner Thickness
7BBL1000 x 1250mm2530mm3mm
10BBL1150 x 1250mm2670mm3mm
15BBL1250 x 1680mm3250mm3mm
20BBL1400 x 1700mm3400mm3mm
30BBL1650 x 1850mm3740mm3mm
40BBL1750 x 2050mm4040mm3mm
50BBL1750 x 2750mm4770mm3mm
60BBL1150 x 1250mm2670mm3mm
80BBL2100 x 2900mm5300mm3mm
100BBL2200 x 3350mm5850mm3mm

Product Advantage

Our Service

Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.

Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.

Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.

(1) Brewery equipment configuration:

Specifications/ginsengnumber1000L2000L3000L5000L
production capacityforce1000L/day2000L/day3 000L/day5 000L/day
combinationsquareModeThree-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system
Electric three- phaseThree-phase electricity / 380(220, 415,440…)v / 50 (60)Hz
heating methodElectric heating / steam heating / direct fire heating
inner layerThe inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding
outer claddingCylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing
floor space>200 square meters>300 square meters>500 square metersDetermined by craftsmanship and investment
price220,000-300,000450,000-600,000InquireInquire
RemarkThe configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service!

(2) Combination form of brewery equipment :

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction

(3) Cases of brewery equipment:

Brewing equipment case 2

Indian Bar
Craft Beer Equipment Inspection

Brewing equipment case 1

Shanghai Beer House
500L craft brewing equipment

500L craft beer fermentation tank

(4) Beer brewing process:

Beer brewing process

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction
