Product Description

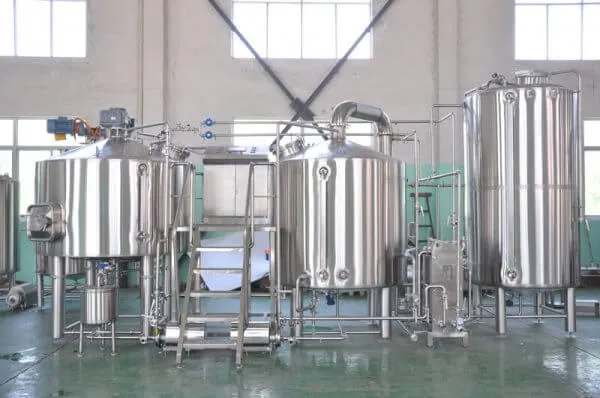

2000L 3vessels Microbrewery Beer Equipment
Mash tank – grist hydrator, agitator, frequency drive, bottom and side with steam jacket
Lauter tun – false bottom, rake system, sparging, rake speed adjustable
Brew kettle- steam jacket
Whirlpool tun-tangent inlet
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 OR 316 plates
Fermentation tanks/Brite beer tanks
4000L HLT and CLT
Glycol cooling system(glycol chiller, glycol tank)
CIP system
Grain mill system(grain miller, flex auger, grist case)
PLC Siemens control system, CE/UL Rated controls and electric components
Keg washer/filler
Product introduction: The whole set of equipment consists of raw material crushing system, combined sugar system, wort cooling system, fermentation system, CIP clear system, plate heat exchanger, refrigeration system, insulation system, power distribution system, water treatment system, pipeline, pump Valve system and other equipment.
Main products: home brewing beer equipment, bar restaurant beer equipment, craft brewery, teaching experiment equipment, fruit wine equipment, microbial fermentation equipment, enzymatic decomposition equipment, brewing auxiliary equipment, etc.
Product Category: Craft Brewery
Product name: 2000L two-body two-device brewing equipment
[customization instructions]: complete products, customized on demand
Product Parameter
| Yield | 2000L 3vessels Microbrewery Beer Equipment |
| combination | Two-body two-vessel saccharification system |
| power supply | AC380/220V, 50/60HZ |
| heating method | steam heating |
| power | 40kw |
| material | 304 stainless steel |
| Scope of use | Suitable for small wineries |
| automation | Semi-automatic/Fully automatic |
| filter method | VFD suction filtration / balance tank natural filtration |
| Product advantages | The product design is compact and suitable for a variety of beer brewing. Overall platform design, easy to install. The process formula is automatically controlled, and the formula can be edited, modified and saved, providing the stability of beer brewing, and the operation is simple and convenient. |
Product Advantage
| No. | Name | Accessories | Configuration |
| 1 | Grain Milling Unit | Rolling Miller | Double roller |
| Speed differential | |||
| 2 | Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
| Laser cutting V-wire False Bottom | |||
| Easy clean and detachable sparging spray ring | |||
| Multihole wort collect ring(optional) | |||
| Anti-rinser(optional) | |||
| Kettle/Whirlpool Tun | Steam Jacket on bottom and side/direct gas fired heating/electric heating | ||
| Steam vent with condensate ring for kettle stack | |||
| Hot water tank | Steam Jacket heating/direct gas fired heating/electric heating | ||
| Heat exchanger | SUS304 plate | ||
| 3 | Fermentation unit | Fermenter | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 4 | Bright beer tank | Bright beer tank | Glycol cooling jacket on cone and bottom |
| Side or top manway | |||
| CIP arm and CO2 blow off arm | |||
| Mechanical relief valve | |||
| Shockproof pressure gauge | |||
| Rotating racking arm | |||
| Dry hopping port | |||
| Carbonation stone | |||
| Sight level | |||
| 5 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom |
| Cold Water Tank | Dimple plate on side wall | ||
| Chiller | |||
| 6 | Control unit | Brewing and fermetation process Controlling | Manual button control panel or PLC control with touch screen for special |
| 7 | CIP | Caustic Tank | Electric heating element inside |
| Sterilization Tank | |||
| Transfer&Control |
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
Bottom of product page – service introduction
(3) Cases of brewery equipment:
Indian Bar
Craft Beer Equipment Inspection
Shanghai Beer House
500L craft brewing equipment
American Bar Shipping
500L craft beer fermentation tank
(4) Beer brewing process:
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
