Product Description

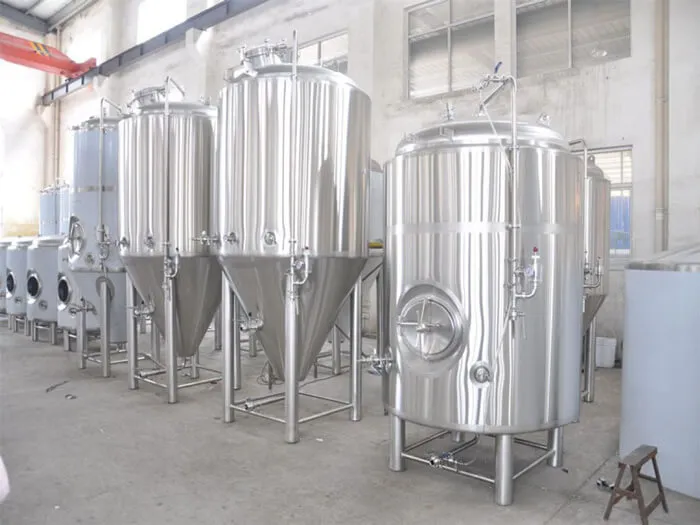

Product introduction: The beer fermentation tank is used in the fermentation stage of beer equipment, and adopts honeycomb jacket and polyurethane for heat preservation. The fermentation tank is made of stainless steel SUS304 material. The tank is equipped with an overpressure and vacuum protection safety valve, and an adjustable wine outlet. It is a kind of equipment for mechanical stirring and fermentation of materials. The equipment adopts the internal circulation method and adopts asymmetric speed regulation stirring, so that the material can be cooled rapidly and at the same time, the damage to the viscosity of the material is minimized.
Main products: home brewing beer equipment, bar restaurant beer equipment, craft brewery, teaching experiment equipment, fruit wine equipment, microbial fermentation equipment, enzymatic decomposition equipment, brewing auxiliary equipment, etc.
Product Category: Bar/Restaurant Beer Equipment
Product name: 2500L beer fermentation tank
[customization instructions]: complete products, customized on demand
Product Parameter
| Yield | 2500L/batch |
| cooling method | Alcohol or Glycol |
| cooling jacket | 2 stage |
| Inner roughness | 0.6um, pickling passivation |
| inner working pressure | 1.5Bar |
| Inner bladder test pressure | 3.0Bar |
| Jacket working pressure | 1.5Bar |
| Jacket test pressure | 3.0Bar |
| Scope of use | Suitable for small factories |
| automation | Semi-automatic/Fully automatic |
| Product advantages | Tank body welding adopts TIG welding, high welding strength, high welding surface quality, not easy to contaminate bacteria, and easy to clean. Pipe welding is formed by one-time bending of pipe bending machine, which avoids welding joints, improves the smoothness of the surface, and is easy to clean. |
Product Advantage
Made of stainless food steel DIN 1.4301 (AISI 304)
Standardized dimensions and equipment, or according to individual customer requirements
Interior Shell: SUS304 full welded; TH=4mm
Exterior Shell:SUS304 full welded; TH=2.5mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket on side wall
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Flanged manway on top
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Carbonation port with stone
Shockproof pressure gauge on CIP arm
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
3 or 4 pcs completely SUS304 heavy duty legs with leveling pad
Sanitary level tube with stainless steel ball valves
Complete valves, fittings and all parts
Our Service
Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.
Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.
Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.
(1) Brewery equipment configuration:
| Specifications/ginsengnumber | 1000L | 2000L | 3000L | 5000L |
| production capacityforce | 1000L/day | 2000L/day | 3 000L/day | 5 000L/day |
| combinationsquareMode | Three-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system | |||
| Electric three- phase | Three-phase electricity / 380(220, 415,440…)v / 50 (60)Hz | |||
| heating method | Electric heating / steam heating / direct fire heating | |||
| inner layer | The inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding | |||
| outer cladding | Cylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing | |||
| floor space | >200 square meters | >300 square meters | >500 square meters | Determined by craftsmanship and investment |
| price | 220,000-300,000 | 450,000-600,000 | Inquire | Inquire |
| Remark | The configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service! | |||
(2) Combination form of brewery equipment :
Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.
At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.
We can provide turnkey projects for beer equipment.
If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!
