Brew Equipment

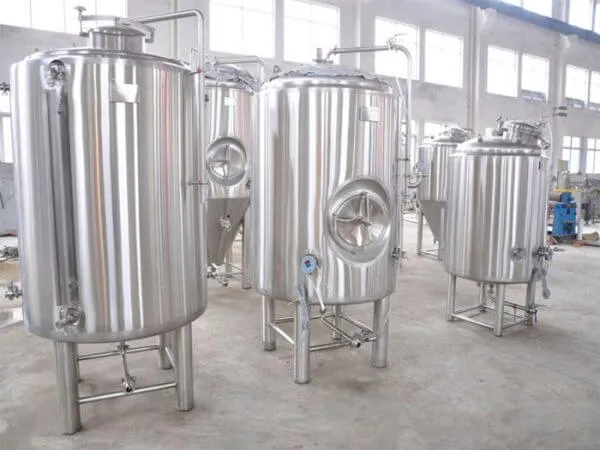

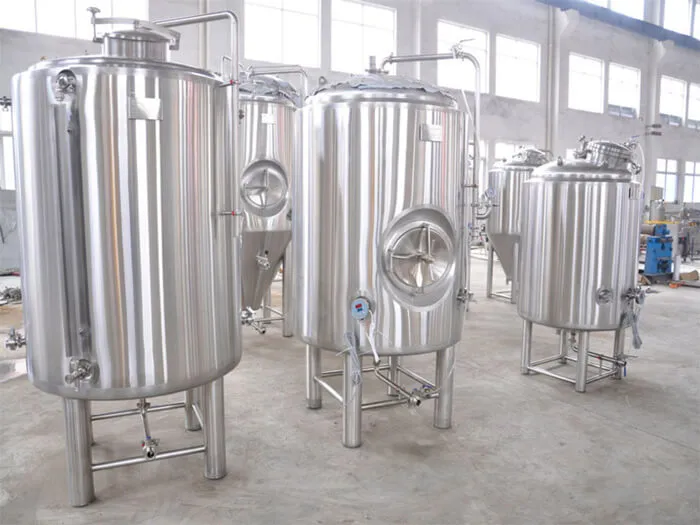

1000L 10HL 1500L Brite Beer Tank

Product Description

1000L 10HL 1500L Brite Tank

Standard Features:
• Dual zone dimple cooling jackets (3 or more on larger tanks)
• Interior shell: 304 stainless steel, thickness 3mm /11 gauge
• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
• 80mm Polyurethane insulation
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
• 580x480mm Side manway, shadowless
• Dry hop inlet at top;
• Accessories:
Sample Valve x1;
Pressure relief/vacuum valve x1;
Temp. sensor / thermometer x1;
Rotating racking arm with butterfly valve x1;
Bottom outlet with butterfly valve x1;
Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;

Product Parameter

Product Advantage

Our Service

Vdobrew brewery equipment series are used in the construction of breweries. The company adopts professional factory systematic brewing procedures, and can install and debug equipment and collect and purchase raw materials according to your requirements.

Such equipment generally has a volume of 1000 liters, 2000 liters, 3000 liters, 5000 liters and more than 5000 liters.

Brewery equipment composition: crushing system, saccharification system, fermentation system, cold water system, ice water system, cleaning system, filtration system, filling system, sterilization system, etc.

(1) Brewery equipment configuration:

Specifications/ginsengnumber1000L2000L3000L5000L
production capacityforce1000L/day2000L/day3 000L/day5 000L/day
combinationsquareModeThree-organ three- body saccharification system, four-organ four-body saccharification system, five-organ and five-body saccharification system
Electric three- phaseThree-phase electricity / 380(220, 415,440…)v / 50 (60)Hz
heating methodElectric heating / steam heating / direct fire heating
inner layerThe inner and outer walls of the barrel stainless steel 304 original plate are finely polished by argon arc welding
outer claddingCylinder stainless steel 304 original plate/mirror panel argon arc welding inner and outer wall fine polishing
floor space>200 square meters>300 square meters>500 square metersDetermined by craftsmanship and investment
price220,000-300,000450,000-600,000InquireInquire
RemarkThe configuration here is for reference only, the specific configuration and price need to be determined according to your specific situation, you can consult customer service!

(2) Combination form of brewery equipment :

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction

(3) Cases of brewery equipment:

Brewing equipment case 2

Indian Bar
Craft Beer Equipment Inspection

Brewing equipment case 1

Shanghai Beer House
500L craft brewing equipment

500L craft beer fermentation tank

(4) Beer brewing process:

Beer brewing process

Small beer production plants produced by Vdobrew produce batches from 300 liters to 5,000 liters.

At the same time, we provide corresponding services, such as a complete set of small beer equipment, full installation services, brewing recipes and processes of well-known wine varieties, and so on.

We can provide turnkey projects for beer equipment.

If you want to know more about the equipment of the brewery, you can consult the Vdobrew team, we will give you a satisfactory configuration plan!

Bottom of product page – service introduction
