Commercial Brewing Equipmemt

We provide a complete set of Commercial Brewing Equipmemt/Beer production line. Capacities from 2000L to 200T, for commercial breweries and large industrial breweries.

Commercial Brewing Equipment Parameters

name

2000L / batch _

3000L / batch _

4000 liters / batch

5000L / batch _

Equipment size

F 1450

custom made

custom made

custom made

volume

2000L

3000L

4000L

5000L

material

SUS304

Cooling method

Miller plate jacket cooling

Polishing method

Mirror polishing, wire drawing board surface, pickling passivation

Polishing accuracy

≤ 0.6um

Tank pressure

Design pressure 0.3MPa

cleaning device

Built-in cleaning device

manhole location

Top flange manhole, top side manhole, waist side manhole

Cooling method

Maitreya plate, dribbling

Lower cone design

60 degree or 72 degree compression design

Yield1000L/batch
combinationTwo-part two-body saccharification system, three-part three-body saccharification system, four-part four-body saccharification system
power supply380V
heating methodElectric heating / steam heating / direct fire heating
power72KW/72KW/15KW
material304 stainless steel inside and outside
Scope of useSuitable for large and medium-sized hotels, bars, food stalls and other restaurants
automationDigital display control /PLC control
filter methodVFD suction filtration / balance tank natural filtration
Product advantages

1. The equipment is beautiful and easy to display;

2. The design of the equipment is compact, easy to operate, and saves floor space;

3. The overall platform frame design is easy to install;

4. The process design is reasonable, and the brewing process of all types of craft beer can be realized;

5. If the PLC control system is configured, the setting, collection and correction of saccharification data can be realized, the beer brewing process is stable, and the operation is simple and convenient.

Advantages of Commercial Brewing Equipment.

1. Product Description:

This set of equipment is made of austenitic stainless steel, and the cooling jacket is in the form of a honeycomb jacket. There are jackets on the tank body and the bottom of the cone, which can effectively improve the cooling rate.

Different proportions of jacket replacement can be set according to the customer’s process requirements.

Thermal area, the bottom is a 60° small cone bottom, which is designed for fermentation and improvement of beer and breeding yeast; PU insulation is used for heat preservation, and the outer skin is made of fully welded stainless steel plate, manhole, CIP clearing, thermometer interface, sampling port and other parts.

2. Product Features

1. Specifications from 300L-50000L, can be customized according to customer needs.

2. It is welded by imported high-quality stainless steel 304 or 316L.

3. The accuracy reaches the sanitary standard, the inner wall polishing finish is less than 0.6 microns, and the exterior is polished with stainless steel (it can be made into primary color, mirror polishing, etc.)

4. Imported polyurethane high pressure foam insulation, cone bottom shape. The cooling jacket adopts Maitreya plate, arch channel, corrugated channel and other jacket heat exchange methods.

5. Washing and sterilizing pipelines, material pipelines, refrigerant return pipelines, and CO2 pipelines are connected between the tanks. All stainless steel pipes in contact with material pipelines are of hygienic standard, and the inner and outer walls are polished to meet dairy-grade hygiene standards.

6. PLC control system can realize automatic and semi-automatic control to ensure the accuracy and effectiveness of process parameters and experimental results.

Specifications and models of hotel brewing:  300L, 500L, 1000L, 2000L, 5000L.

Factory-type craft brewery: Nissan 300L, 500L, 1000L, 2000L, 5000L.

The company can provide equipment design, processing, engineering installation, and other services, and provide better investment solutions for your hotels, restaurants and small and medium-sized breweries!

Why Choose Vdobrew Commercial Brewing Equipmemt ?

 ✔  1. Competitive price, more than 15 years manufacturing experience.

 ✔ 2. ISO9001, CE (2014/68/EU) PED certification

 ✔ 3. Strict quality control, in line with European quality standards

 ✔ 4. Accept customization, professional engineers provide you with design solutions

 ✔ 5. Simple operation: including all jars to be brewed.

 ✔ 6. Compact: covers an area of about 2-3 square meters.

 ✔ 7. All kinds of beer can be brewed, such as lager, pale ale, dark beer, IPA, dark beer, etc.

 ✔ 8. Exquisite craftsmanship: fermentation – double-jacketed conical fermentation tank, with concave plate cooling jacket, perfect welding.

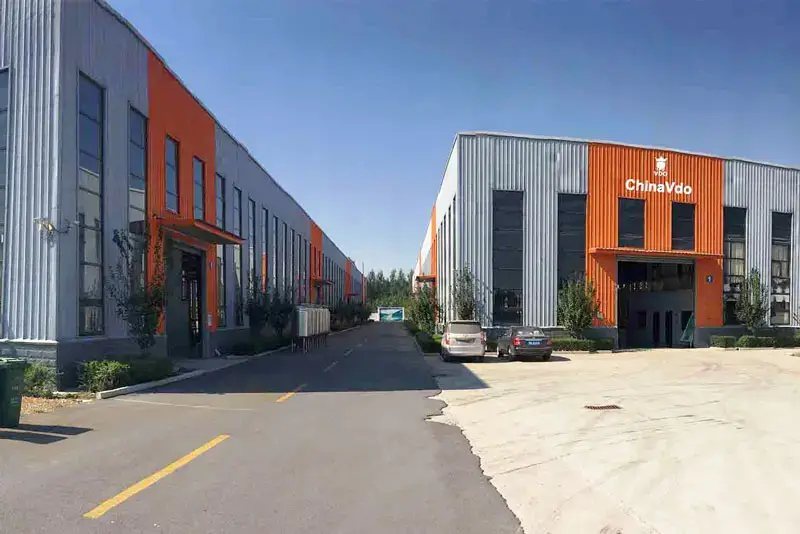

About Vdo

Commercial Brewing Equipment Case

 ✔  1. Competitive price, more than 15 years manufacturing experience.

 ✔ 2. ISO9001, CE (2014/68/EU) PED certification

 ✔ 3. Strict quality control, in line with European quality standards

 ✔ 4. Accept customization, professional engineers provide you with design solutions

 ✔ 5. Simple operation: including all jars to be brewed.

 ✔ 6. Compact: covers an area of about 2-3 square meters.

 ✔ 7. All kinds of beer can be brewed, such as lager, pale ale, dark beer, IPA, dark beer, etc.

 ✔ 8. Exquisite craftsmanship: fermentation – double-jacketed conical fermentation tank, with concave plate cooling jacket, perfect welding.

About Vdo

Commercial Brewing Equipmemt Turnkey Solution Service

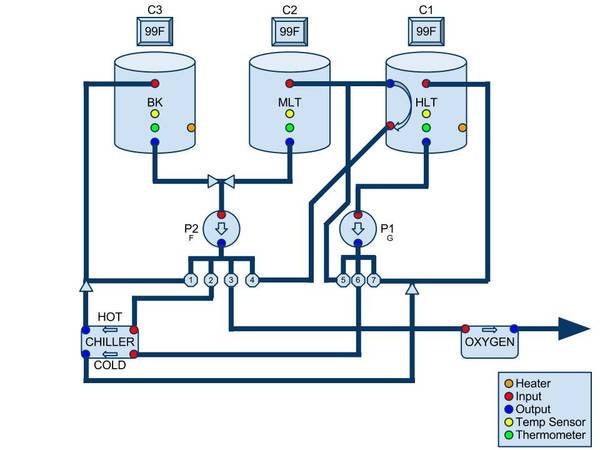

Design Brewing Equipment 1 1

Custom Concept Design

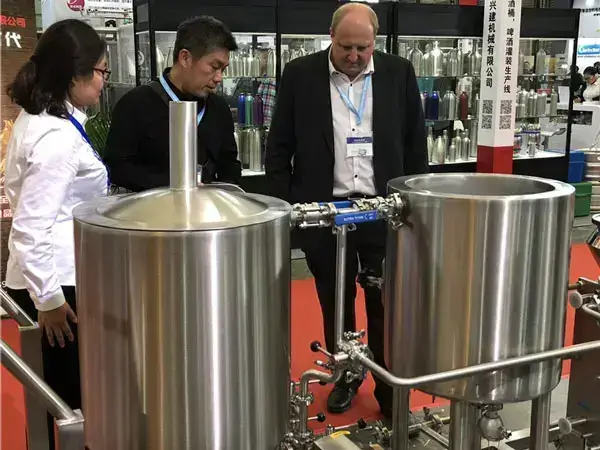

Home Brewing equipment 1 1

ISO CE ..High Quality Production

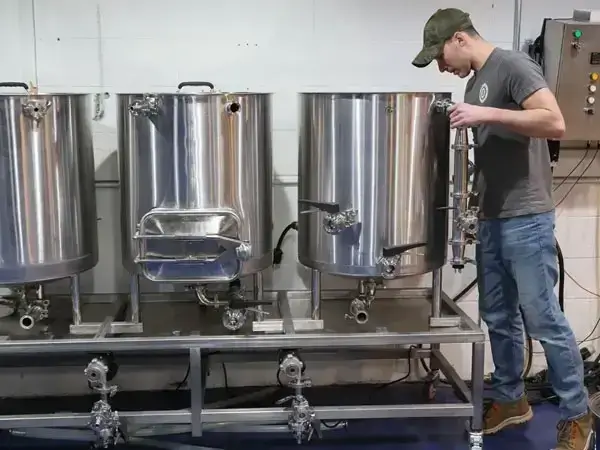

Brewing Equipment Installation 1 1

Commissioning & Service
